Software

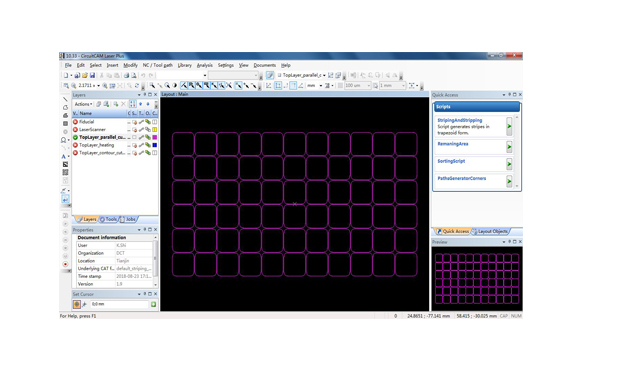

CircuitCAM 7 Laser

Complete functionality for all milling and drilling operations as well as Laser machining for cutting, structuring and exposure.

Freely configurable geometry engine for all kinds of tool-path generation, easily customizable for your specific needs, either by yourself, our sales representatives or directly by DCT

· Laser exposure for Lasers with variable aperture size

· Laser scanner support,by splitting the layout area in smaller scanner areas

by special acceleration and de-acceleration paths for equal energy

distribution

· Methods to avoid double Laser structuring at the same places to avoid

burn ins

· Pannel and Step & Repeat

· Customizable template files

· more import and export formats

· Enhanced interactive graphics editing capabilities

Features

Perfect function

Innovative algorithm optimized tool path multiplies the processing quality and speed

Easy to use

Easy to use, intuitive and clear interface, smooth data processing

Core of the value

Technique and know-how from experts integrated, precedents are available for common, special and difficult task

High compatibility

Major industry formats compatible, templates according to CAD/EDA station, convert design to tool path easily

Worry-free service

Worry-free service, independent help menu and manual, reliable support and upgrade ensures continuous improvement

Product parameters

Category	Feature	Basic	Laser	Pro	Laser Plus
CAM file
	Open	?	?	?	?
	Save	?	?	?	?
Import
	Gerber	?	?	?	?
	GerberX (See Below on Cutouts)	?	?	?	?
	Excellon/Sieb & Meyer	?	?	?	?
	LMD	?	?	?	?
	HP-GL	?	?	?	?
	DXF	?	?	?	?
	Barco DPF	?	?	?	?
	ODB++	?	?	?	?
Export
	G-Code	?	?	?	?
	Gerber	?	?	?	?
	GerberX	?	?	?	?
	Excellon	?	?	?	?
	LMD	?	?	?	?
	HP-GL	?	?	?	?
	HP-GL with pen width	?	?	?	?
	DXF	?	?	?	?
	Barco DPF	?	?	?	?
	PostScript	?	?	?	?
	List of Sub-Layout Instances			?	?
Special
	Datamatrix	?	?	?	?
	PCB-DRC	?	?	?	?
	Stencil DRC			?	?
Editing
	Editing of Primitives and Flashes	?	?	?	?
	Multi level Undo/Redo	?	?	?	?
	CSG (set operations)		?	?	?
	Polygon with Cutouts (also for Import)		?	?	?
	Convert to Flash & Comparison		?	?	?
	Draw to Flash		?	?	?
	Denest Flash		?	?	?
	Create Outline		?	?	?
	Step & Repeat		?	?	?
	Create Bounding Shape		?	?	?
	Shape Manipulations		?	?	?
	Sub-Layout instances			?	?
	Geometry Manipulations Center (GMC)			?	?
Tool Path
	Insulation Milling	?	?	?	?
	Contour Routing	?	?	?	?
	Base Material & Fixture	?	?	?	?
	Tool compensation	?	?	?	?
	Swap & Sequence	?	?	?	?
	Sorting / path optimization	?	?	?	?
	NC Mode	?	?	?	?
	Configurable Toolpath Engine (Universal / Laser / Milling / Drilling)		?	?	?
	Laser Fill		?	?	?
	Laser Insulate		?	?	?
	Scanner Fields		?	?	?
	SMT Stencil calculation			?	?
	SMT Stencil Frame Generator			?	?
	Striping & Stripping				?
Library
	Create Package			?	?
	Create Footprint			?	?
	Package Recognition			?	?
	GMC Exchange			?	?
	Apply Footprints			?	?
	Import Library			?	?
